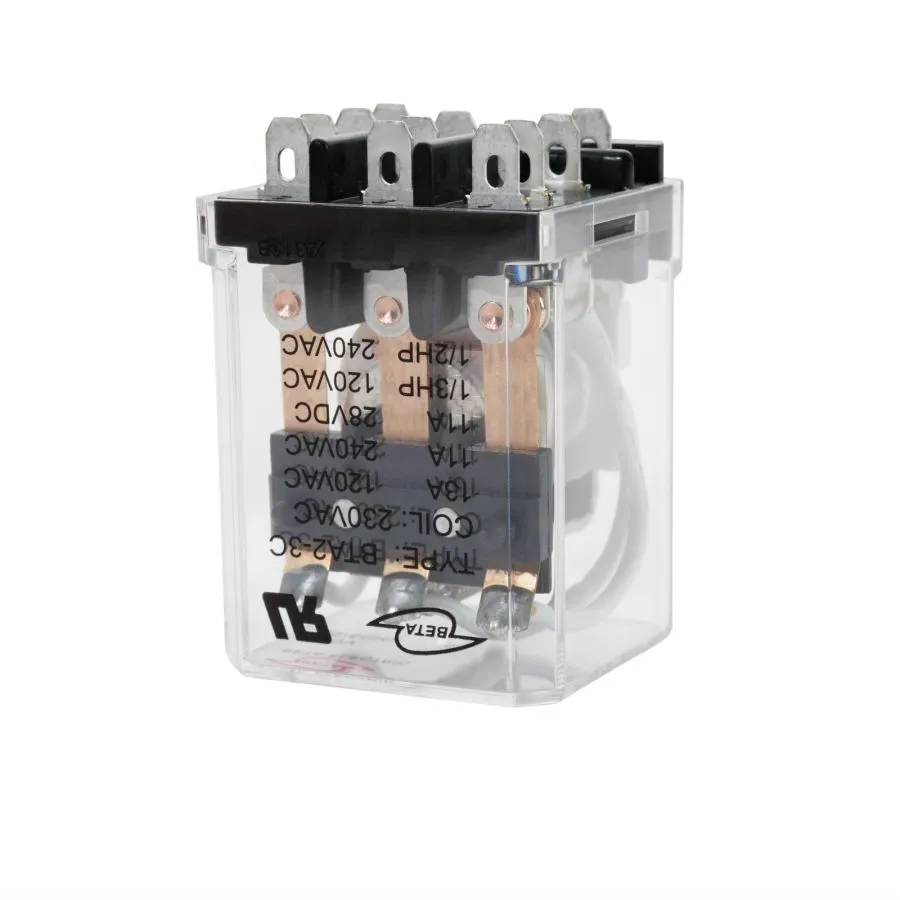

Maximize the efficiency and reliability of your industrial systems with our Industrial Machine Control Relays. Designed to meet the rigorous demands of automated machinery, these relays offer superior performance in controlling various devices within industrial applications. Whether managing motors, conveyors, or automated production lines, these relays ensure your equipment operates smoothly and safely.
Key Features:
High Contact Capacity:
3C (3-Pole, Double-Throw): 11A
Built to handle high-current applications, ensuring superior performance and longevity even in demanding environments.
Contact Form:
3C (3PDT): Offers versatile control with a triple-pole, double-throw configuration, perfect for controlling multiple circuits simultaneously.
Optional Magnetic Arc Extinguishing:
Available for DC models, ensuring arc suppression and enhancing safety in your control system during operation.
LED Indicator:
Displays coil ON/OFF status, with red for AC and green for DC, providing clear visual feedback for easy monitoring of relay status.
Manual Test Button:
Allows for quick circuit testing and verification of relay operation, reducing downtime and simplifying maintenance.
Environmental Compliance:
Meets RoHS and REACH standards, ensuring your equipment aligns with global environmental safety regulations.
Multiple Shell & Terminal Options:
Available in various housing styles and terminal sizes, making it easy to integrate into existing industrial control systems.
Wide Coil Voltage Range:
Supports voltages from 6–110VDC and 6–240VAC, offering flexibility for use in a broad range of industrial applications.
Industrial Applications:
Automated Systems:
Efficiently control complex machinery and automated equipment within industrial production lines.Motor & Pump Control:
Ensure reliable switching and protection for industrial motors, compressors, and other heavy-duty machinery.Industrial Equipment:
Perfect for controlling large-scale machinery in manufacturing, robotics, and other industrial sectors.
| Parameter | Value/Specification for 3C |
|---|---|
| General Electrical & Mechanical Parameters | |
| Pickup Voltage (23°C) | DC: ≤80%, AC: ≤85% of rated voltage |
| Release Voltage (23°C) | DC: ≥10%, AC: ≥30% of rated voltage |
| Max. Voltage | 110% of rated voltage |
| Coil Power | DC: 1.2W, AC: 2.0–3.0VA |
| Pickup Time | AC: ≤30ms, DC: ≤20ms |
| Release Time | AC: ≤25ms, DC: ≤15ms |
| Insulation Resistance | 1000MΩ @ 500VDC |
| Dielectric Strength (1 min) | |
| Between Same Pole Contacts | 1000VAC |
| Between Opposite Pole Contacts | 1500VAC |
| Between Coil and Contact | 1500VAC |
| Environmental & Mechanical Specifications | |
| Operating Temperature | –30°C to +65°C (no ice or frost) |
| Humidity | 5% to 85% RH |
| Atmospheric Pressure | 86–106 kPa |
| Vibration Resistance | 10–55Hz, 1.0mm double amplitude |
| Impact Stability | 98 m/s² |
| Impact Strength | 980 m/s² |
| Contact Specifications | |
| Resistive Load | 11A @ 28VDC/240VAC; 13A @ 120VAC |
| Motor Load | 1/3 HP @ 120VAC; 1/2 HP @ 240VAC |
| Switching Power | 308W / 2640VA |
| Contact Material | AgSnO₂ Alloy |
| Initial Contact Resistance | ≤50mΩ |
| Electrical Life | 100,000 operations |
| Mechanical Life | 10,000,000 operations |
| Physical Specifications | |
| Dimensions (L × W × H) | 35mm × 35mm × 53mm |
| Weight | Approx. 92g |
| Terminal Types | Plug-in or PCB (depending on model) |
